Performance of FPC flexible circuit board, try the chip microneedle module

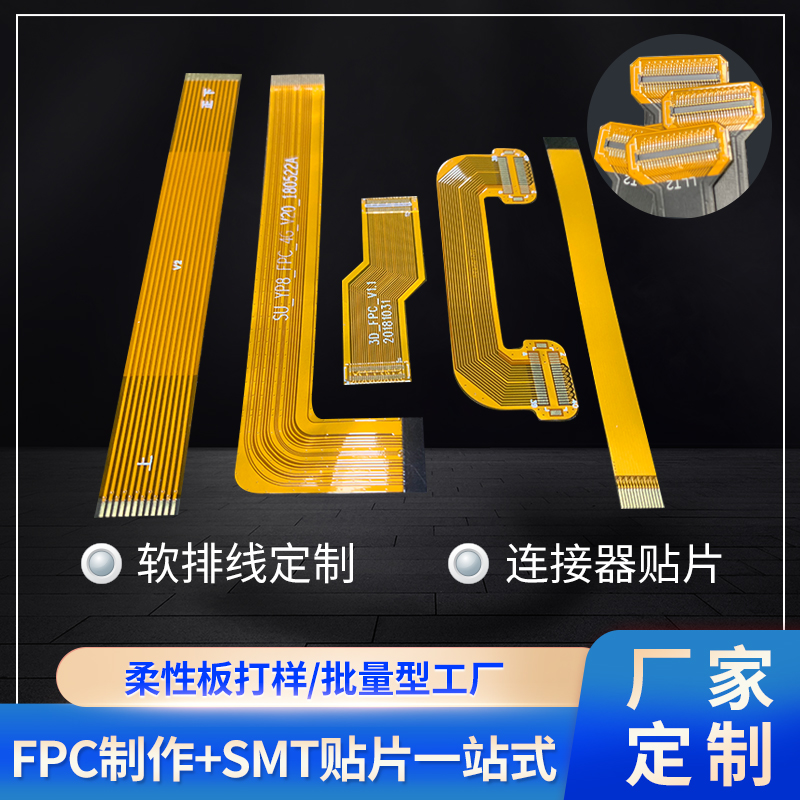

FPC flexible circuit board is widely used in smart phones because of its high wiring density, light weight, thin thickness and good flexibility. FPC flexible circuit board in smart phones is mainly used for the connection between parts and the motherboard, such as display module, fingerprint module, camera module, antenna, vibrator, etc. With the continuous upgrading of cameras to three cameras and four cameras, as well as the use of OLED screens, fingerprint modules continue to penetrate, The use of FPC flexible circuit boards will continue to increase.

With the development of smart phones towards miniaturization, portability and multi-function, FPC flexible circuit board has the characteristics of portability and bendability, which makes it occupy a higher and higher market share in smart phones. However, FPC flexible circuit board may have defects such as open circuit, short circuit, line width discrepancy, etc. in the production process of processing, loading, and mounting, so it is necessary to make FPC flexible circuit board reliable.

FPC flexible circuit board and spring micro pin module have stable connection function, which can ensure the efficiency of FPC connector. Its integrated structure can make the resistance constant, and can transmit large current. The maximum withstand current is 50A, and the current transmission is stable within the range of 1-50A, with strong over-current capacity. In addition, the shrapnel micro needle module has an average service life of more than 20W times. It can effectively deal with FPC flexible circuit boards, with strong performance, without frequent replacement, which can improve efficiency and reduce costs.

The value range of the chip micro needle module in the small pitch is 0.15-0.4mm. It has reliable performance and strong adaptability. There is no pin jam or broken pin during the connection. It has good performance in FPC flexible circuit board. The frequency of FPC flexible circuit board is high and the demand for current is large. The corresponding connection module is required to have the function of large current transmission. The performance of the large current spring micro needle module can just meet the demand of FPC flexible circuit board. It is a highly reliable connection module.
